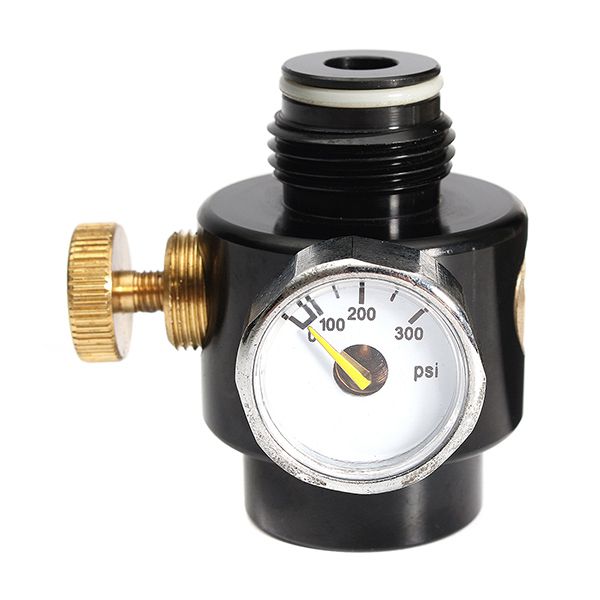

High-pressure Paintball Regulator

Topa pcp tank regulator features an advanced balance design that allows it to output a stable pressure, improving the accuracy and reliability of the design.

Its inlet and outlet are equipped with gauze to prevent airborne impurities from entering your cylinder, which will reduce the number of times impurities get stuck in the seat. Impurity substances on the paintball regulator seat can prevent it from sealing, causing the bursting disc to rupture.

It has an adjustable outlet pressure that can be lowered from 700 – 900 psi to 400 – 600 psi by changing the spring, which fits most low pressure markers. It is also equipped with a flow limiter to reduce the number of bursts of the rupture disc for increased safety.

More importantly, it is equipped with a large pressure gauge for increased visibility when filling a pcp air gun or paintball gun.

Product detail

  • Inlet thread is 5/8-18UNF, outlet thread is 0.825-14NGO
  • Inlet pressure is 4500psi, outlet pressure is 850,1000,1200,1500,1800
  • Compact threads, no leakage
  • Exquisite appearance and good price
  • With stable outlet pressure

Data sheet

Pcp tank regulator

Material

Aluminum+brass

Suitable gas

Co2/air

Inlet Thread one

M18x1.5 or 5/8-18UNF or customized

Outlet

0.825 -14 NGO

Burst disk one

lp: 1.8K ; 3K

Burst disk two

h.p: 5K; 7.5K

Input pressure

3000psi / 4500psi

Output pressure

800psi /1200psi/1800psi /2000psi/ 2200psi
